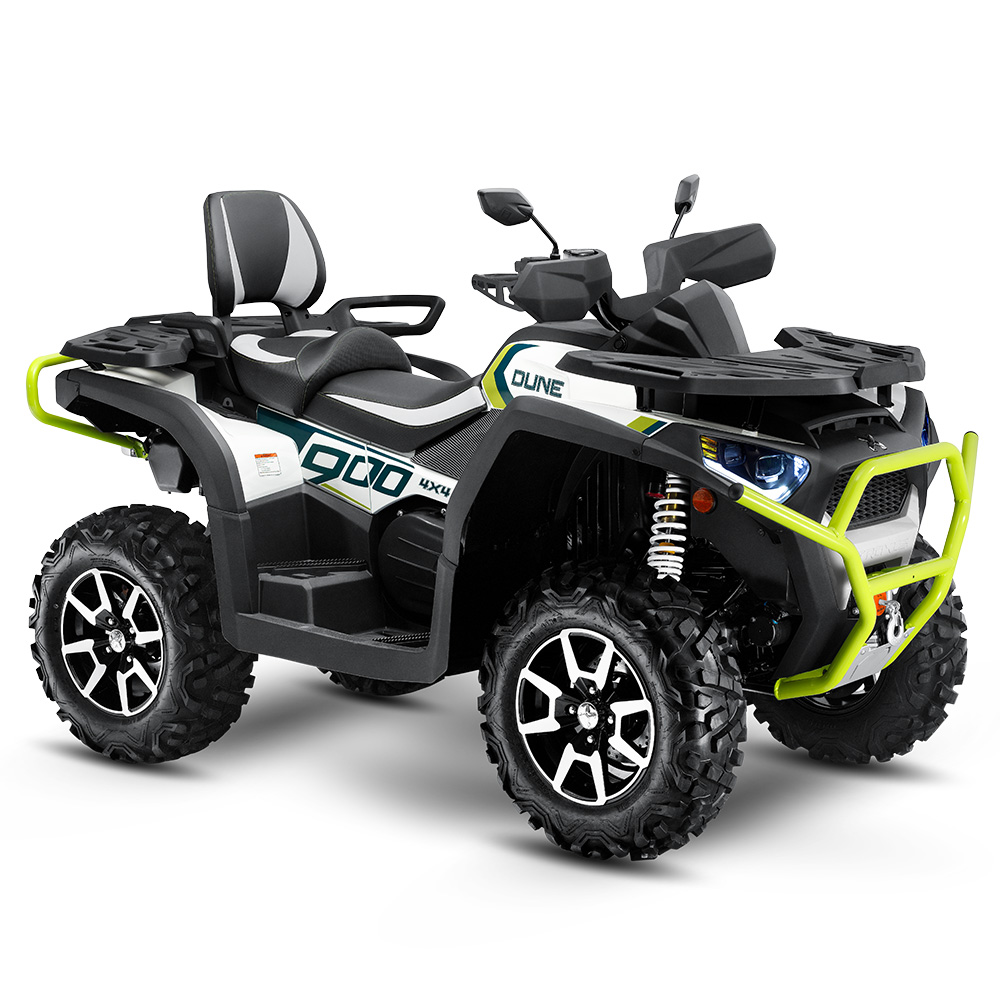

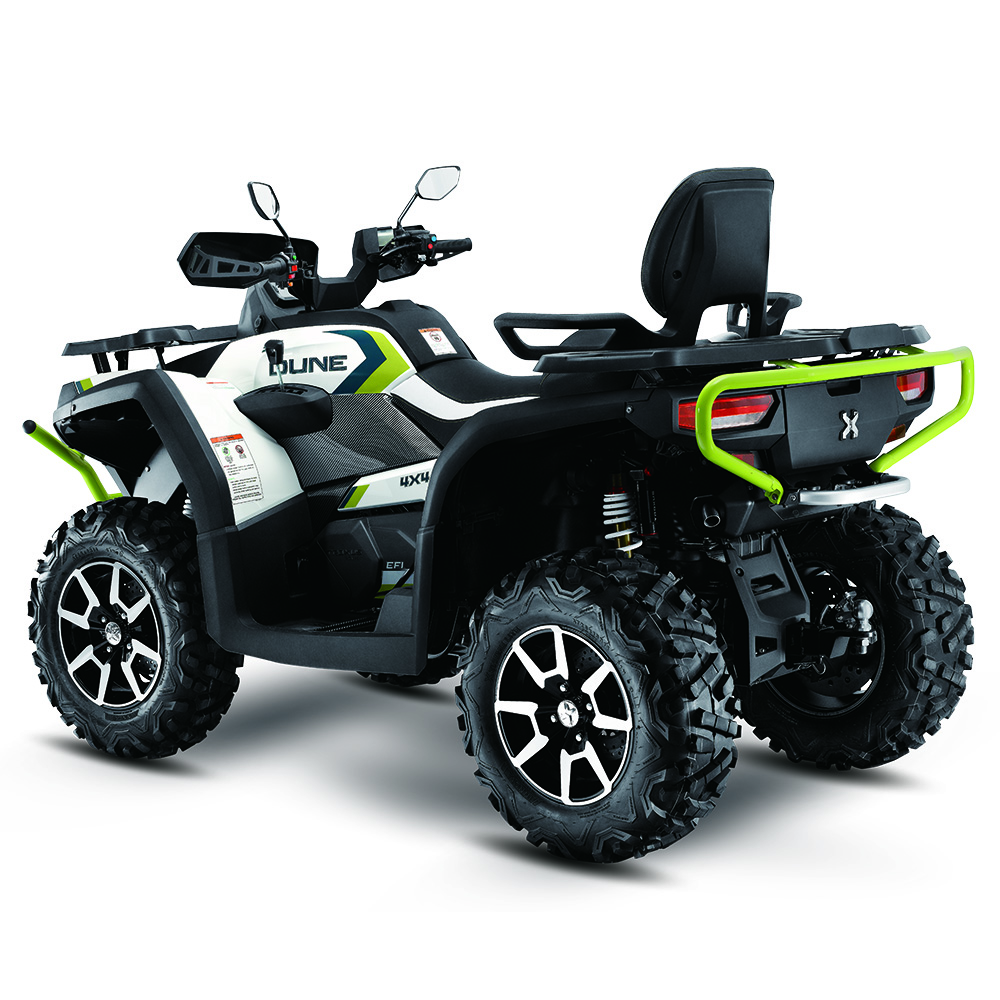

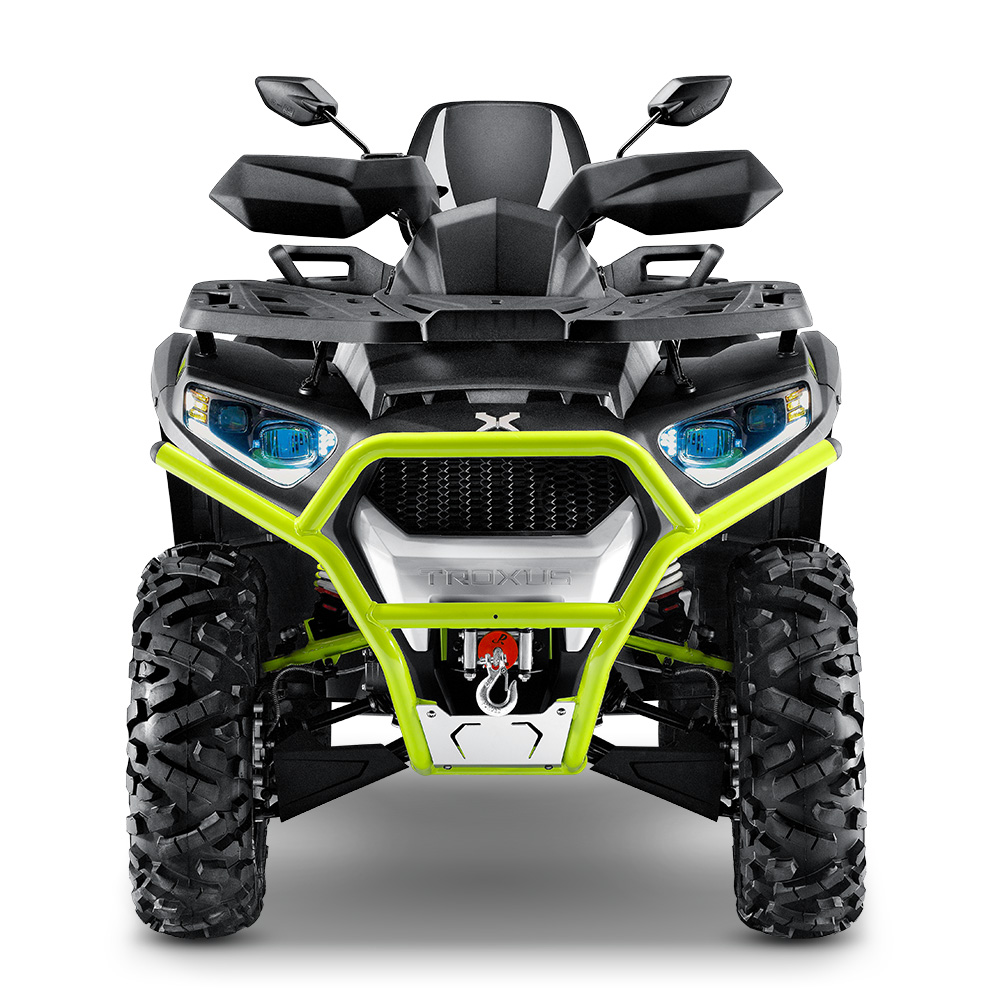

900CC ATV 4X4 EEC T3A T3B ROAD LEGAL QUAD BIKE

shared：


ENGINE
TYPEV2 8vales, EFI, Liquid-cooed SOHC
DISPLACEMENT885cc
COMPRESSION RATIO10.5:1
BROE*STROKE91mm×68mm
MAX.POWER/RPM55kW/7250rpm
MAX.TORQUE/RPM80N·m/5500rpm
FUEL DELIVERY SYSTEMEFI
IGNITIONECU
SHIFTINGCVT+Gear Box
TRANSMISSION2WD/4WD Electric switch
DRIVEDrive shaft




CHARACTERISTIC
L*W*H2186×1208×1435
WHEEL BASE1360mm
SEAT HEIGHT592mm
GROUND CLEARANCE285mm
MIN. TURNING RADIUS8mm
FRT. TRACK1005mm
PR. TRACK937mm
CURB WEIGHT400kg
MAX. LOAD CAPACITY145kg
FUEL TANK CAPACITY20L
CAPACITY OF THE GEAR CARGO BOX14L
BASHBOARDMulti-function electronic LCD dashboard
LIGHTLED frt./tail light


CONTROLS
FRT.SUSPENSIONDouble-A-Arm independent suspension
RR.SUSPENSIONDouble-A-Arm with torsion axle suspension
STEERINGEPS (Optional)
SHOCK ABSORBERSOil shock absorber
PART BRAKEBrake on wheel(Rear)
BRAKE SYSTEM4-wheel hydraulic disc
RIMSFrt.：AT14x6.0 Alluminium
RR.：AT14x7.5.0 Alluminium
TIRESFrt.：26x8R14  44N6PL
RR.：26x10R14 51N6PL
