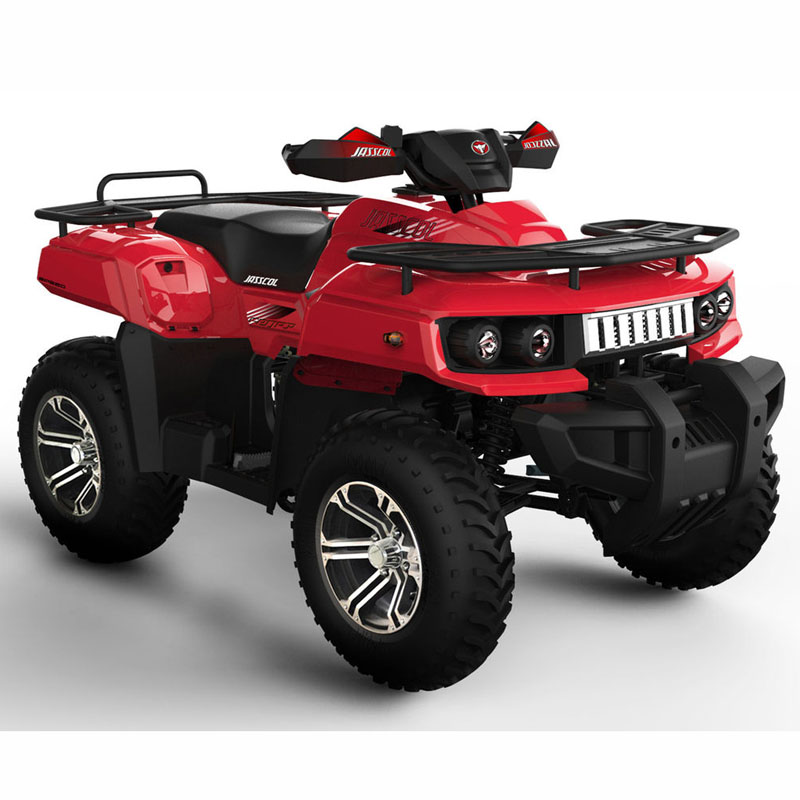

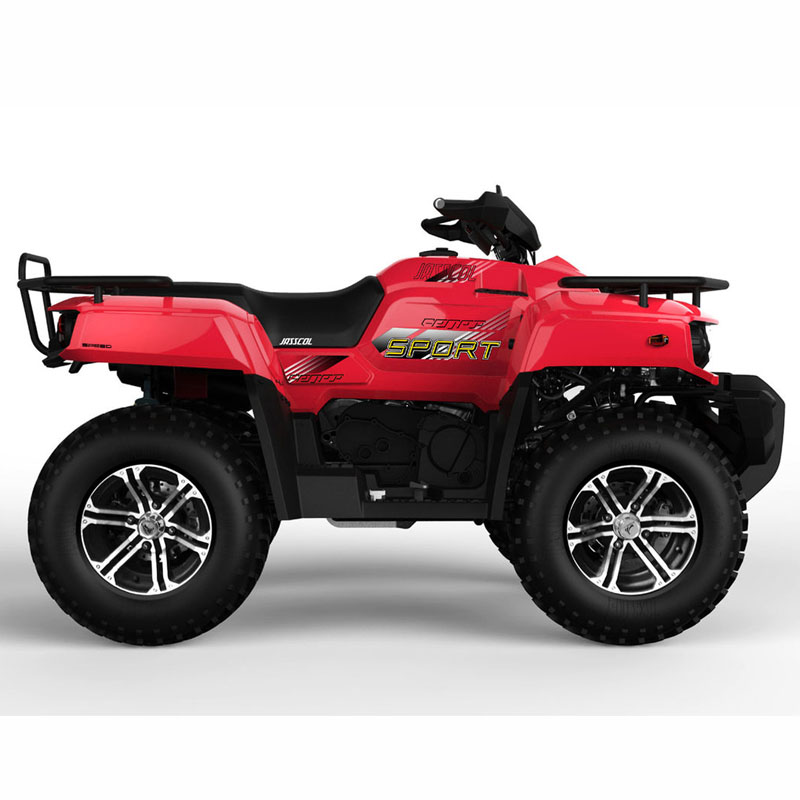

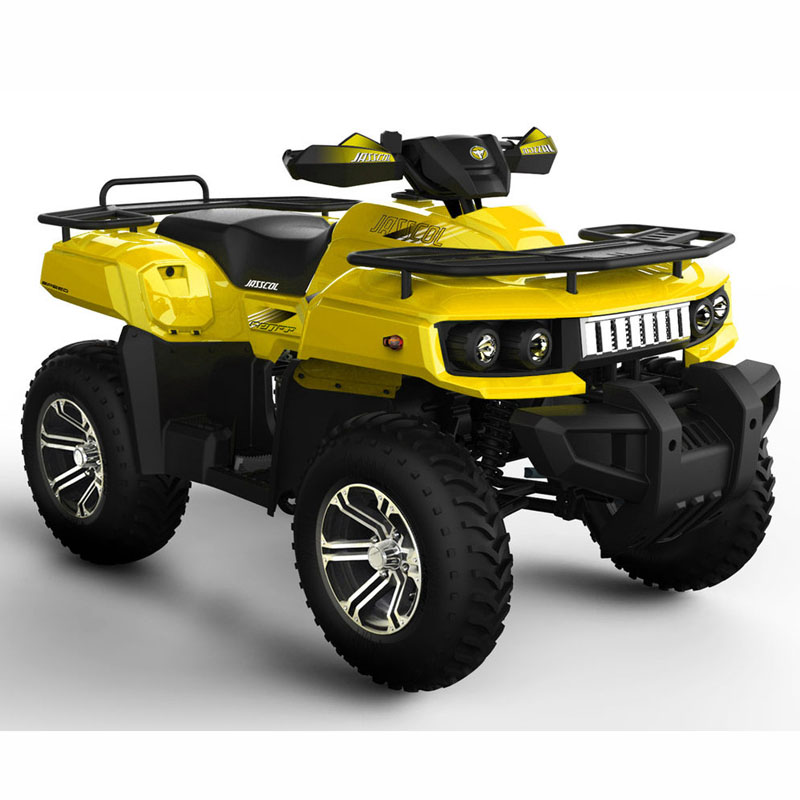

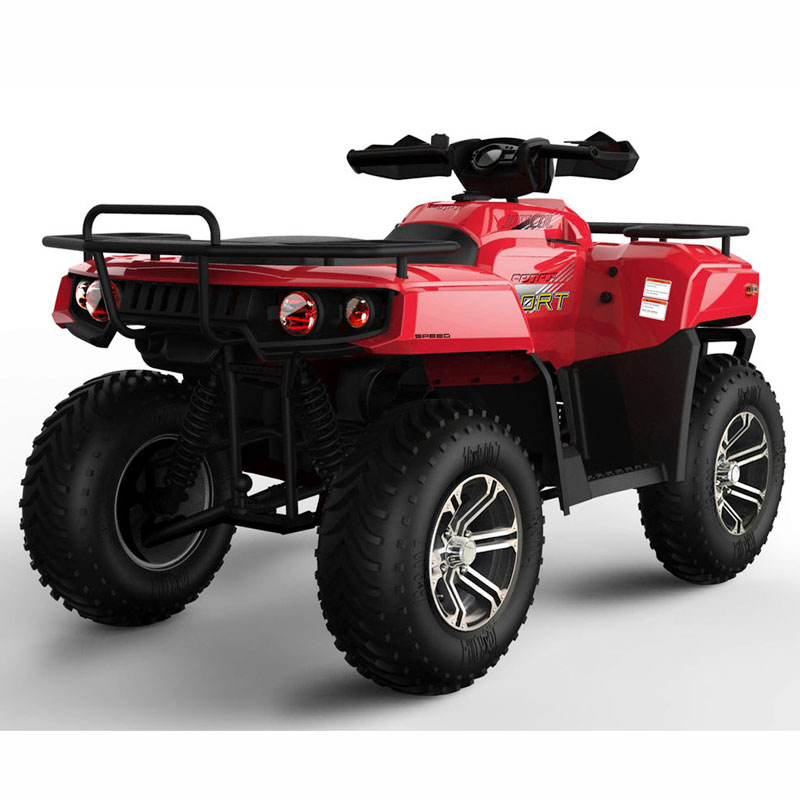

T3A/B 450CC ATV 4X4 ATV QUAD BIKE KXA-32

DOMENSION: 2335x1144x1340mm（TWO SEATS VERSION）

WHEEL BASE: 1460 mm

GROUND CLEARANCE: 250mm

MIN.TURNNIG DIA.: 6500mm

WEIGHT: 345kg

LOADING CAPACITY: 240kg

FUEL TANK CAPACITY: 17.6L

TOP SPEED: >80km/h

TOWING CAPACITY WEIGHT（TRAILER WITHOUT BRAKE SYSTEM): 250kg

TOWING CAPACITY WEIGHT （TRAILER MUST WITH BRAKE SYSTEM): 585kg

DIFFER.LOCK: Front axle differential, rear axle differential lock (Option)

DRIVING MODE: 4WD

BRAKING SYSTEM: FRONT AND REAR DISC BRAKE

SUSPENSION MODE F/R: DOUBLE A-ARM INDEPENDENT SUSPECTION

SUSPENSION TRAVEL F：190mm; R：225mm

SUSPENSION TYPE F/R: COIL SPRING+OIL DAMPING TYPE

RIM MODE F：12x6.5AT; R：12x7.5AT

TIRE MODE F：25x8.00-12; R：25x10.00-12

ENGINE TYPE: SINGLE CYLINDER,WATER COOLING, FOUR STORKE, ENGINE BALANCE SHAFT

DISPLACEMENT: 391 cc

BORE * ROUTE: 82x74mm

MAX POWER/RPM: 20kW/6500rpm

MAX TORQUE/RPM: 30N.m/5000rpm

COMPRESSION RATIO: 10:01

FUEL SUPPLY MODE: EFI

IGNITION CONTROL MODE: ECU

TRANSMISSION TYPE: CVT / BELT

Standard Configuration:

EFI, 4WD, Front differential lock, Aluminum wheel, Back rest,

LED front and tail light, Hand bar protector,

Front & Rear A-arm protector, 12V 35AH battery

CONTAINER QTY: 1X40'HQ LOADING: 30 UNITS; 1X20'GP LOADING: 10 UNITS
